Equipment and Job Request Information
Affiliation Chemical Analysis Div., Research Facility Center for Science and Technology
Category Thermal Analysis/Measurement Instruments

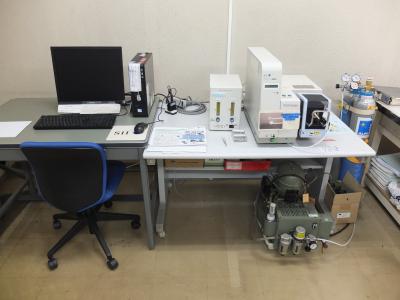

Equipment (Job Request) Thermal Analyzer EXSTRAR 6000series: TG/DTA 6300
Supplier (Equipment type) Seiko Instruments Inc (EXSTRAR 6000-Series: TG/DTA 6300)

Specification・Features

Thermal analysis is a technique used for state analysis of the thermal properties of a substance and analysis of reaction mechanisms by detecting a change in its properties as its temperature is changed. This is a thermogravimetry/differential thermal analyzer (TG/DTA) to simultaneously perform thermogravimetric analysis (TG) to measure a weight change in the sample as it is heated and cooled at a constant rate and differential thermal analysis (DTA) to record the temperature difference between the solid sample and the reference substance versus time or temperature as both of them are heated or cooled under the same conditions. Thermal analysis information can be obtained, including melting of the sample, phase transition, glass transition, pyrolysis, and absorption and desorption.
[Measuring temperature range: room temperature to 1300℃]
Date of installation: March 10, 1998
Installation site Research Facility Center for Science and Technology,Chemical Analysis Division 202
Remark
Research Accomplishment
Inquiry 利用相談はこちらより必要事項をご記入の上、お問い合わせください。
機器担当者 担当者:権田
University-wide
Shared Use Rate
1,380 Yen / 30 min.
University-wide
Job Request Rate
4,830 Yen / hr.
